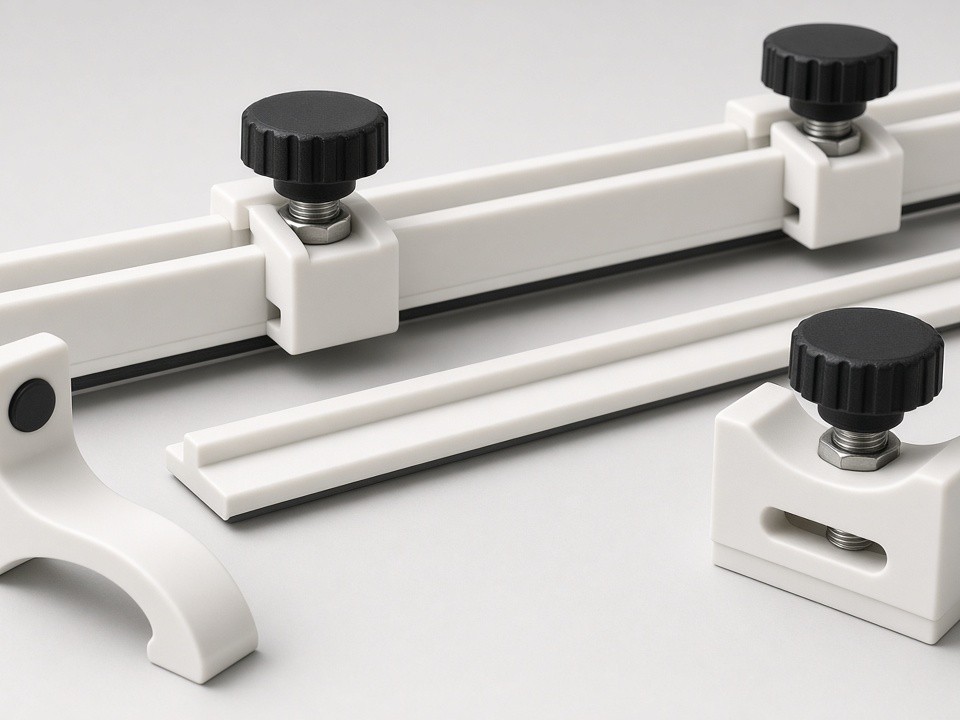

Precision CNC Machined Plastic Conveyor Guides
Industrial conveyor systems rely on high-performance plastic components to maintain line speed, reduce friction, and prevent product damage. At PlasticCNCPro, we manufacture custom plastic conveyor guides, wear strips, and transition rails tailored to your specific line dimensions and material requirements. Moving away from standard catalog items gives you components that fit your existing frame perfectly, reducing installation time and mechanical stress.
- Tolerance
- ±0.05mm
- Max Length
- 2000mm
- Finish Range
- Ra 0.8–3.2μm
- Batch Size
- 1 – 500+
Engineering Plastics for Demanding Environments
Choosing the right material is the first step in ensuring your conveyor system operates without frequent replacements. We machine a variety of polymers designed to withstand specific operational stressors.
UHMW-PE
The industry standard for conveyor guides, thanks to its exceptionally low coefficient of friction and high impact strength.
Nylon (PA6 / PA66)
Superior mechanical strength and wear resistance for structural guide rails under continuous load.
POM (Acetal)
Excellent dimensional stability and low moisture absorption, keeping your guides from swelling in humid environments.
PEEK & PPS
Reserved for high-heat or chemical-heavy production lines where standard plastics would deform.
Antistatic / Conductive Grades
Essential for electronics or powder-handling lines where static discharge must be prevented.
Our Manufacturing Capabilities
We use multi-axis CNC milling and turning centers to produce guides with complex geometries, including radius curves, counterbored mounting holes, and dovetail profiles.
Unlike generic plastic fabricators, our process focuses on the specific challenges of machining conveyor components.
- Stress Relieving: We manage material internal stresses so long guide rails remain straight after machining and resist bowing during installation.
- Tight Tolerance Milling: We hold tolerances down to ±0.05mm, ensuring guides align perfectly with high-speed automated machinery.
- Surface Finish Control: Specialized finishes minimize product drag and prevent debris buildup on the guide surface.
- Repeatable Batch Production: From a prototype for a new line to a recurring order of 500 units for maintenance inventory, our CNC setup ensures every piece is identical.
Typical Technical Specifications
| Feature | Capability |
|---|---|
| Machining Methods | CNC Milling, Turning, Drilling, Slotting |
| Dimensional Tolerance | ±0.05mm to ±0.1mm (depending on geometry) |
| Max Machining Length | Up to 2000mm (segmented options available) |
| Common Materials | UHMW-PE, HDPE, POM, Nylon, PEEK, PTFE |
| Surface Finish | Ra 0.8μm – 3.2μm |
| Inspection | CMM, Calipers, Micrometers, Thread Gauges |
Why Custom Machining Beats Off-the-Shelf Parts
Standard conveyor parts often force you to adapt your machinery to the part. Custom machining allows the part to adapt to your machine.
Integration
We machine custom mounting patterns directly into the guide, eliminating on-site drilling and reducing the risk of component misalignment.
Material Optimization
If your line wears out guides too quickly, we can suggest a higher-grade material — for example, switching from HDPE to UHMW-PE or adding fillers — without changing your design.
Supply Chain Continuity
For older equipment where original spare parts are no longer available, we reverse-engineer your worn samples to produce exact-fit replacements.
Quality Assurance for Industrial Applications
A failing conveyor guide can stop an entire production line. Our quality department performs a rigorous inspection process on every batch.
-
Incoming Material Verification
Ensuring the raw plastic meets the required grade and specification.
-
In-Process Checks
Monitoring dimensions during the CNC cycle to catch deviations early.
-
Final Inspection
Validating critical dimensions against your provided CAD drawings or samples.
-
Export-Ready Packaging
Moisture-proof, secure crating so your parts arrive in perfect condition, ready for immediate installation.
Request a Quotation for Your Conveyor Project
We provide transparent, engineering-focused quotations. Our team reviews your files for manufacturability and recommends a material selection and production strategy that meets your performance and budget goals.
- Technical Drawings: PDF, STEP, or DXF files are preferred.
- Material Requirements: If unsure, share application details such as a high-speed bottling line, corrosive chemical environment, or food-grade requirements.
- Quantity: Let us know your prototype or production volume needs.
- Tolerance Requirements: Specify any critical dimensions that require tight control.
Send your project details to info@plasticcncpro.com.
