Precision Polymer CNC Machining

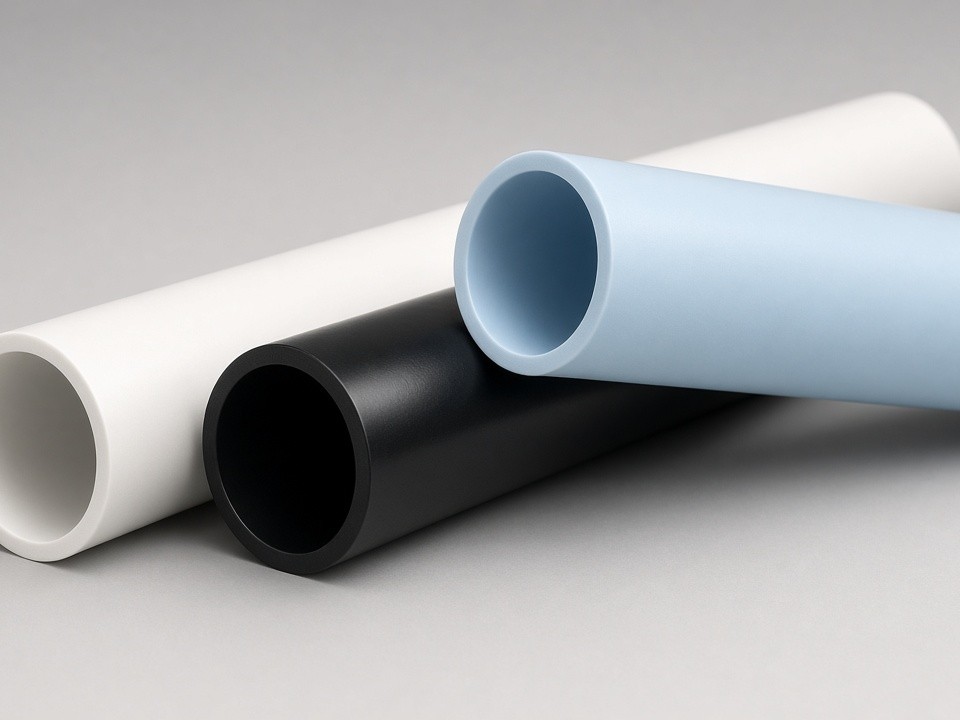

Precision CNC Machining for Custom Plastic Sleeves
PlasticCNCPro provides specialized CNC machining services for high-performance plastic sleeves. We deliver parts that meet strict mechanical, thermal, and chemical requirements for industrial equipment, fluid-handling systems, and automation machinery.
Why Precision Matters in Plastic Sleeves
Plastic sleeves often serve as critical wear surfaces, insulators, or alignment guides. Unlike metal, engineering plastics behave differently under heat and mechanical stress. Our team manages these variables by selecting the right material grades and employing machining techniques that minimize internal stress.
By controlling thermal expansion and moisture absorption during the CNC process, we ensure your sleeves maintain their fit and function once installed in your assembly.
±0.01mm
Dimensional tolerance, material dependent
Ra 0.8µm
Standard surface finish, from
OD/ID
Tight-tolerance fits
Technical Capabilities for Custom Sleeves
We operate a range of CNC milling and turning centers capable of handling complex geometries, including internal grooves, stepped bores, and tight-tolerance OD/ID fits.
| Specification | Capability |
|---|---|
| Machining Methods | CNC Turning, Milling, Drilling, Boring, Reaming |
| Dimensional Tolerance | Down to ±0.01mm (material dependent) |
| Standard Surface Finish | Ra 0.8µm - 3.2µm |
| Wall Thickness | Thin-wall capability for specialized applications |
| Common Features | Flanges, keyways, chamfers, and oil grooves |
Material Selection for Your Application
Choosing the wrong material can lead to premature failure or assembly issues. We assist engineering teams in selecting the optimal polymer based on your operating environment.
Wear & Friction
POM (Acetal), UHMW-PE, and Nylon grades provide low friction for bushings and sleeve bearings.
High Temperature
PEEK, PPS, and PEI maintain structural integrity in extreme heat environments.
Chemical Resistance
PTFE, PVDF, and PFA offer inert properties for fluid handling and chemical processing.
Static Dissipation
ESD-safe and conductive grades are available for electronics and semiconductor equipment.
Supporting Your Project Lifecycle
We bridge the gap between initial concept and production. Whether you are validating a design with a small batch of prototypes or require consistent, repeatable quality for low-to-medium volume production, our process is built for efficiency.
-
1
Design for Manufacturability (DFM)
We review your 3D files and 2D drawings to identify potential issues before production begins, preventing costly delays.
-
2
Sample Validation
We provide first-article inspection reports so you can verify dimensions and tolerances before we proceed to batch manufacturing.
-
3
Consistent Quality
We maintain rigorous inspection standards for every production run, ensuring the 100th part matches the 1st.
-
4
Flexible Export
We handle the logistics of shipping worldwide from our Dongguan facility, ensuring your parts arrive properly packaged to prevent transit damage.
Common Industry Applications
Our machined plastic sleeves are used by OEMs and system integrators across various sectors.
Automation
Bearing sleeves and spacers for linear motion systems.
Fluid Handling
Valve sleeves and pump components requiring chemical inertness.
Electronics
Insulating sleeves for high-voltage components.
Medical
Precision sleeves for laboratory and diagnostic devices.
Request a Quotation for Your Sleeves
To receive an accurate quote, please provide your 2D drawings or 3D models (STEP/IGES preferred), material specifications, total quantity, and any critical tolerance requirements.
Contact Our Engineering Team
- info@plasticcncpro.com
- Address
- 29 Fuxing Road, Dongguan City, Guangdong Province, China
Send your files today for a technical review and a prompt quotation. We prioritize clear, engineering-focused communication to help you keep your project on schedule.
